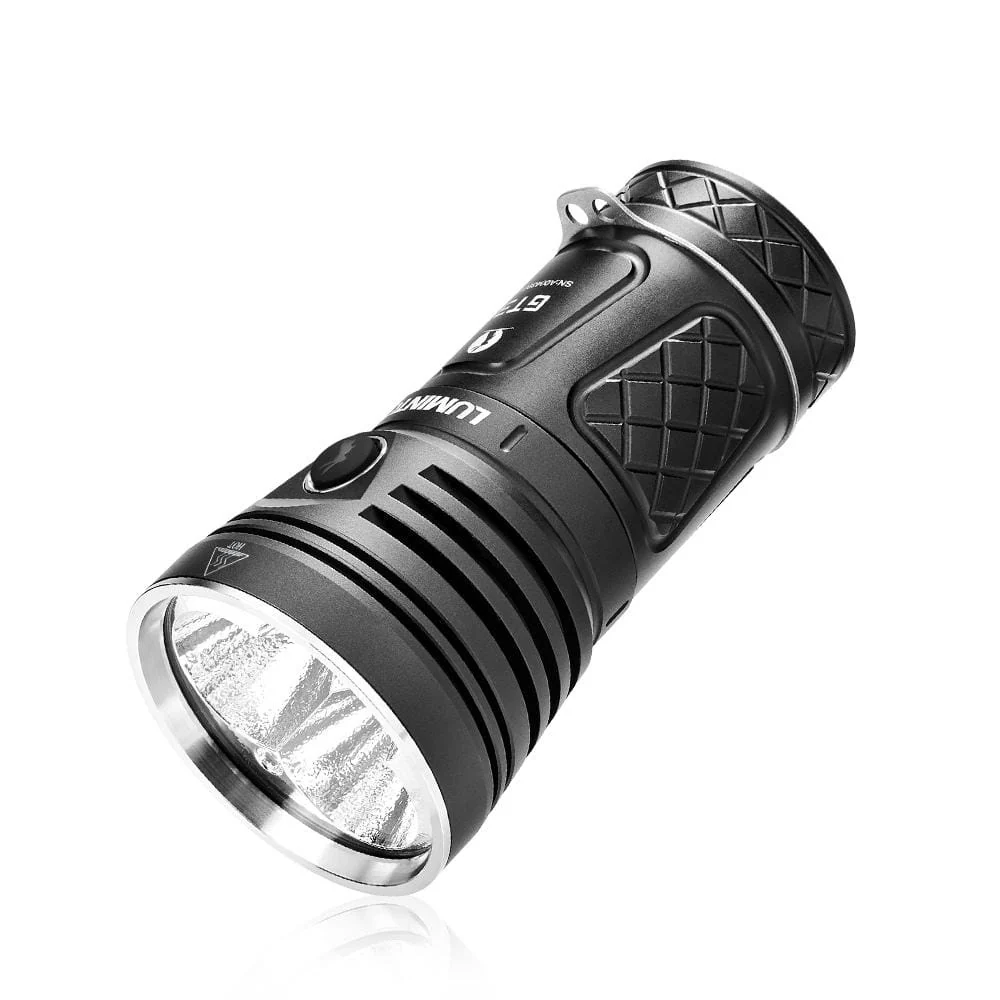

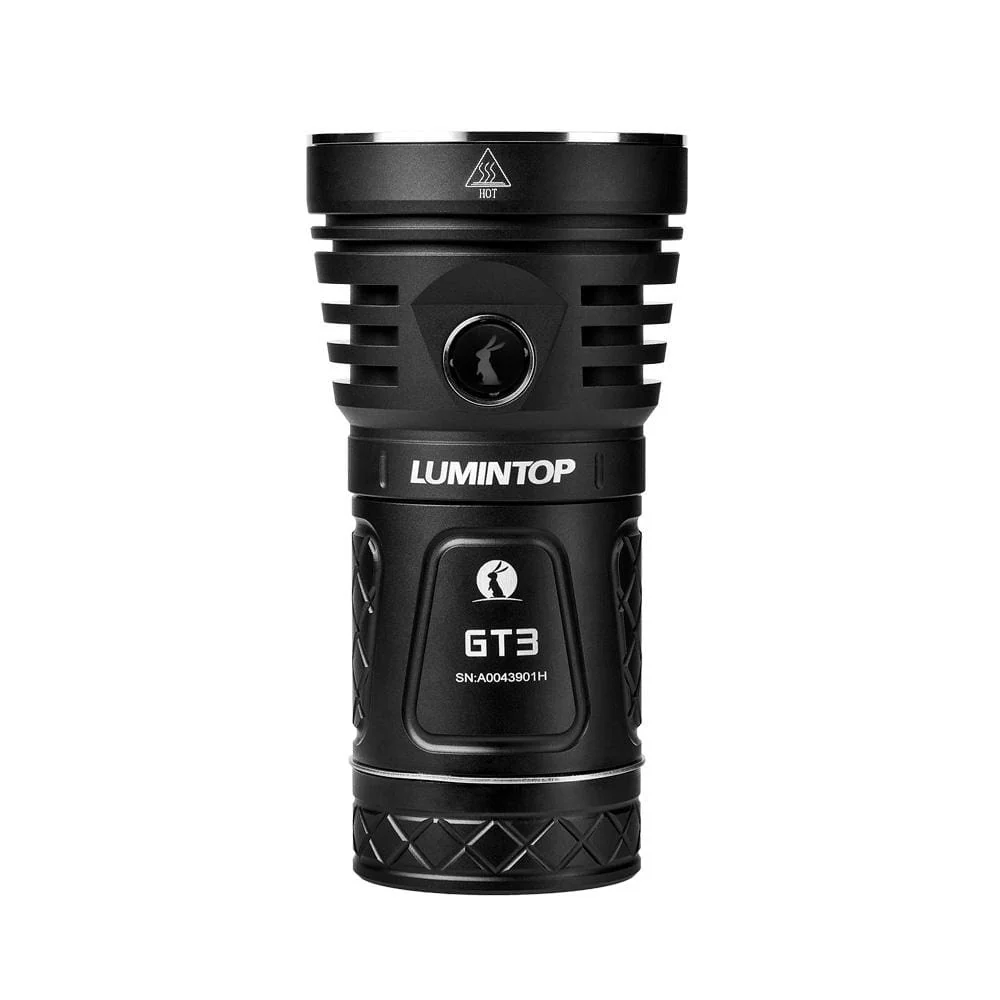

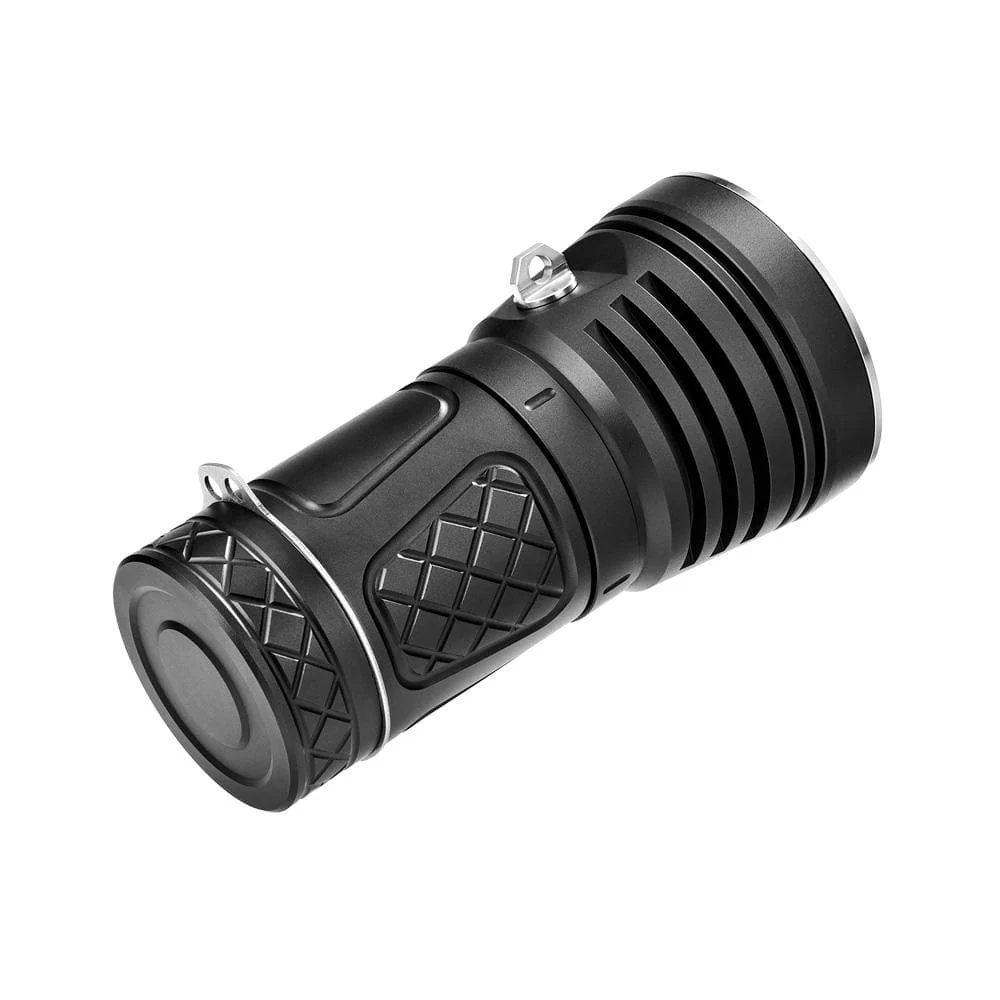

Lumintop GT3 Flashlight



Specifications

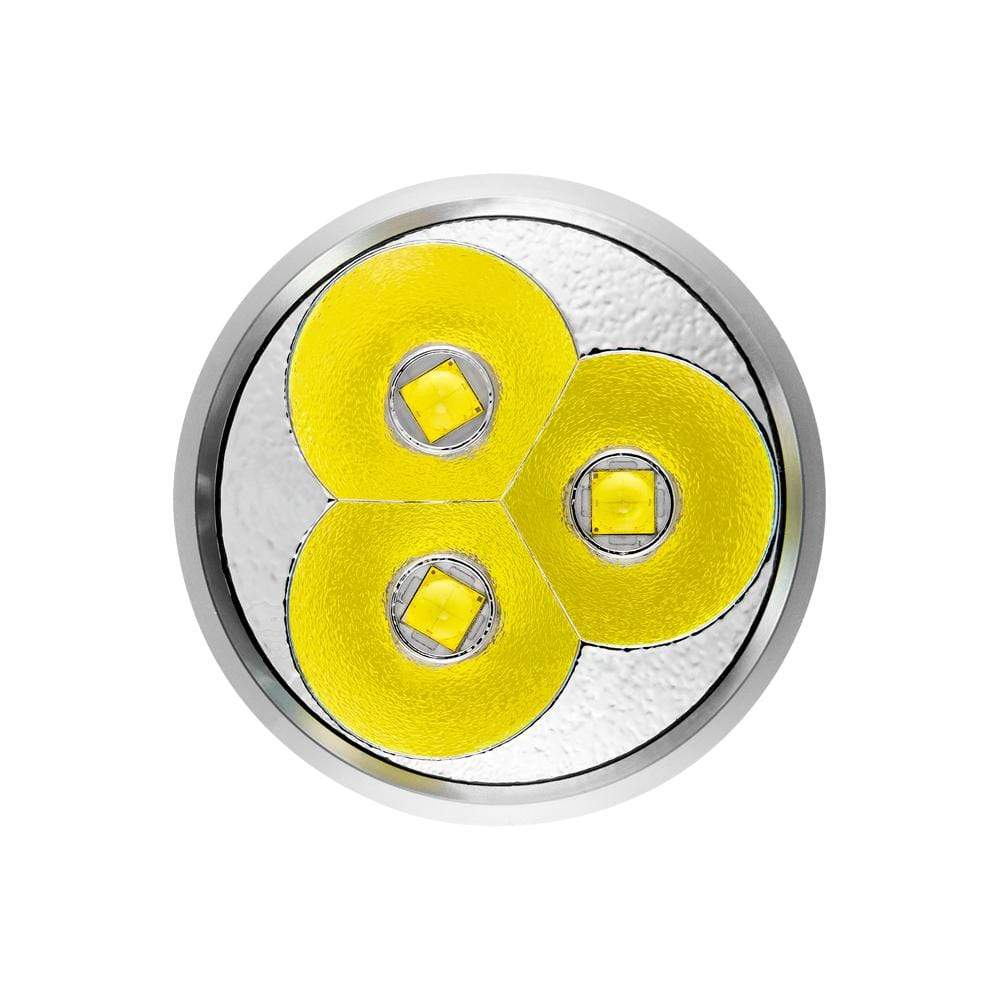

Emitter:  3*12V Cree XHP70.2  High Intensity,  cool white (6500k) and neutral white (5000k) optional, mounted on copper DTP MCPCB

Flux:  >18,000 lm

Intensity:  >8.6K kcd (ANSI throw >580 m)

Firmware:  Tom  E’s  open-source NarsilM v1.3 adapted by Texas_Ace

User interface:

[1] By default, the GT4  is set to use the very intuitive Narsil smooth RAMPING UI. Instant access to a 21 A TURBO mode is also provided.

 [2]  A more conventional discrete level MODE-SET UI is available as an alternative. Anyone of 12  pre-defined mode-sets can be selected.

 [3] MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets.

Battery:  Four button-top 18650 cells.  Unprotected cells are recommended.  Batteries are not included.

Driver:  12V, Texas Avenger V2

Reflector:  62mm inner diameter, aluminum, smooth finish

Lens:  Glass with anti-reflective coating

Body:  Aluminum with Type III hard-coat anodizing

Tripod socket:  Standard 1/4 inch threaded  (1/4-20 UNC)

Button:  Tactile with back-lit rubber boot

Ingress rating:  Equivalent to IP68, do not immerse in liquids

Weight:  Approximately 475g without cells

Dimensions:  68 mm head x 130 mm length x 52mm tube
