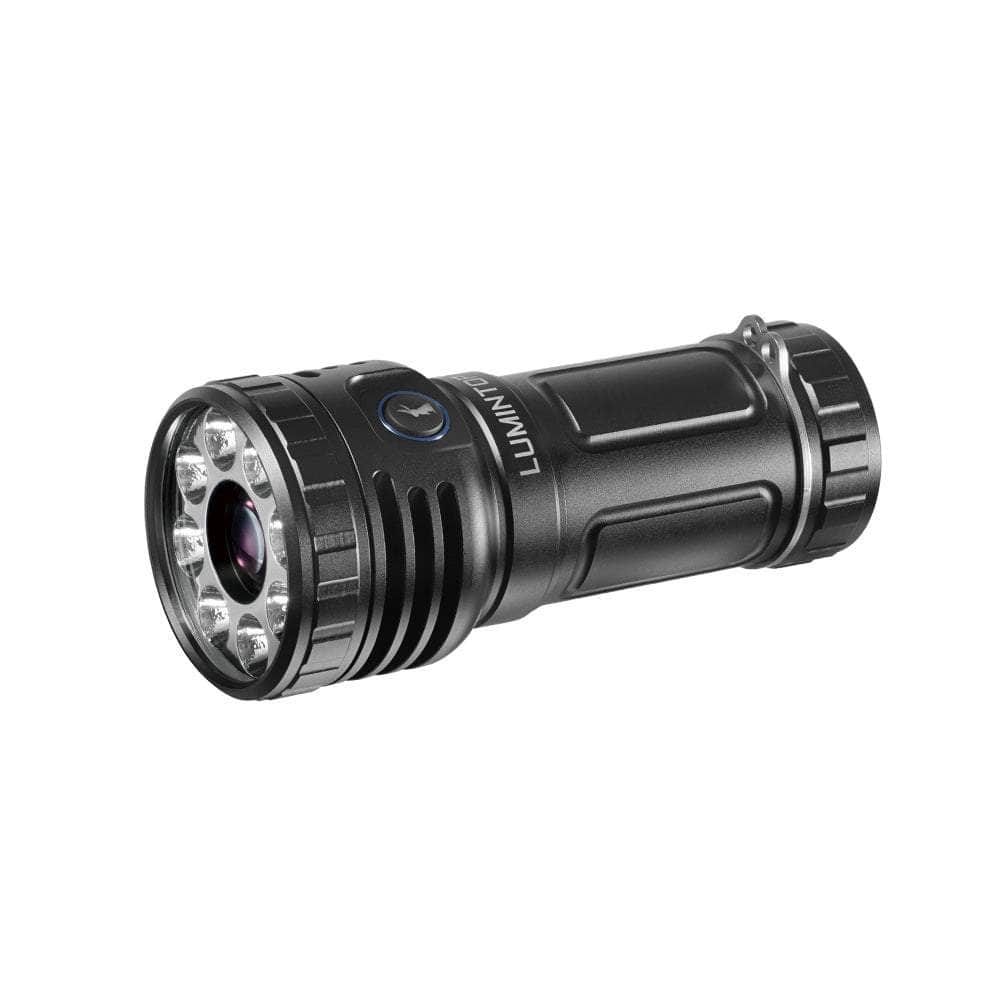

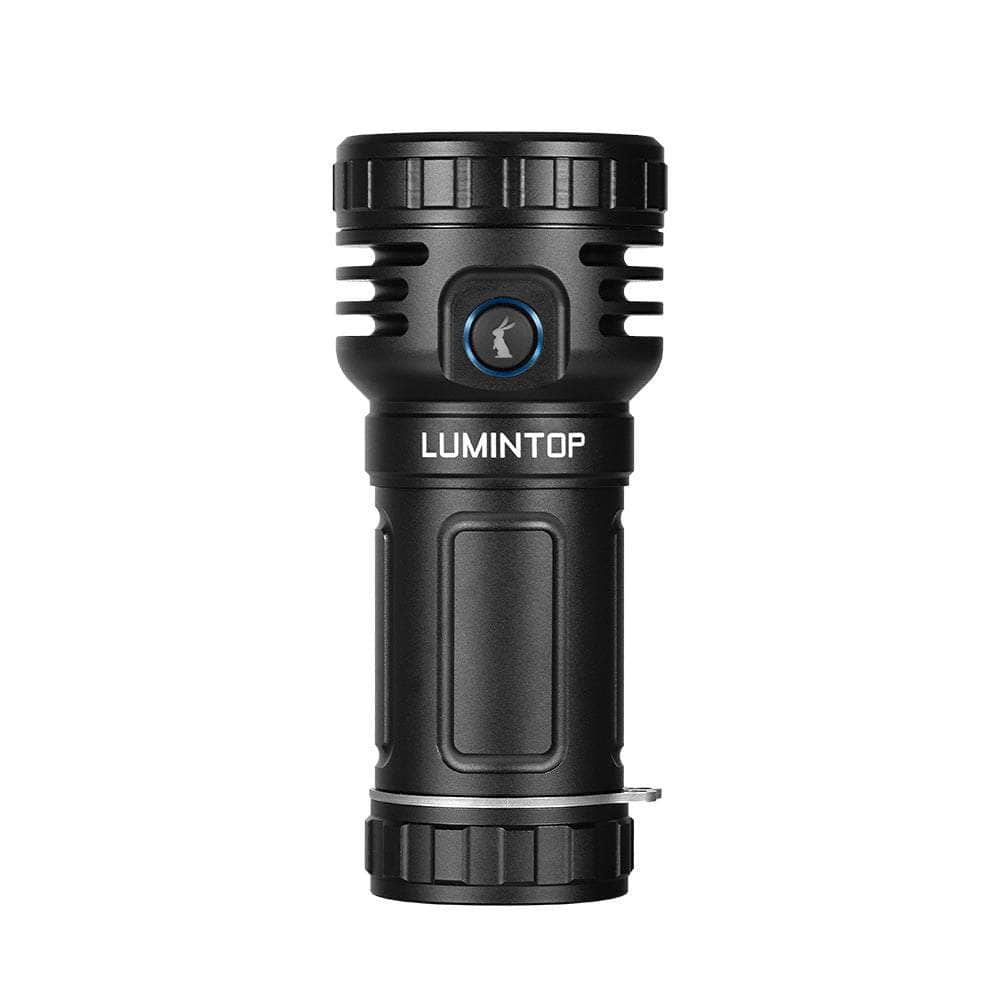

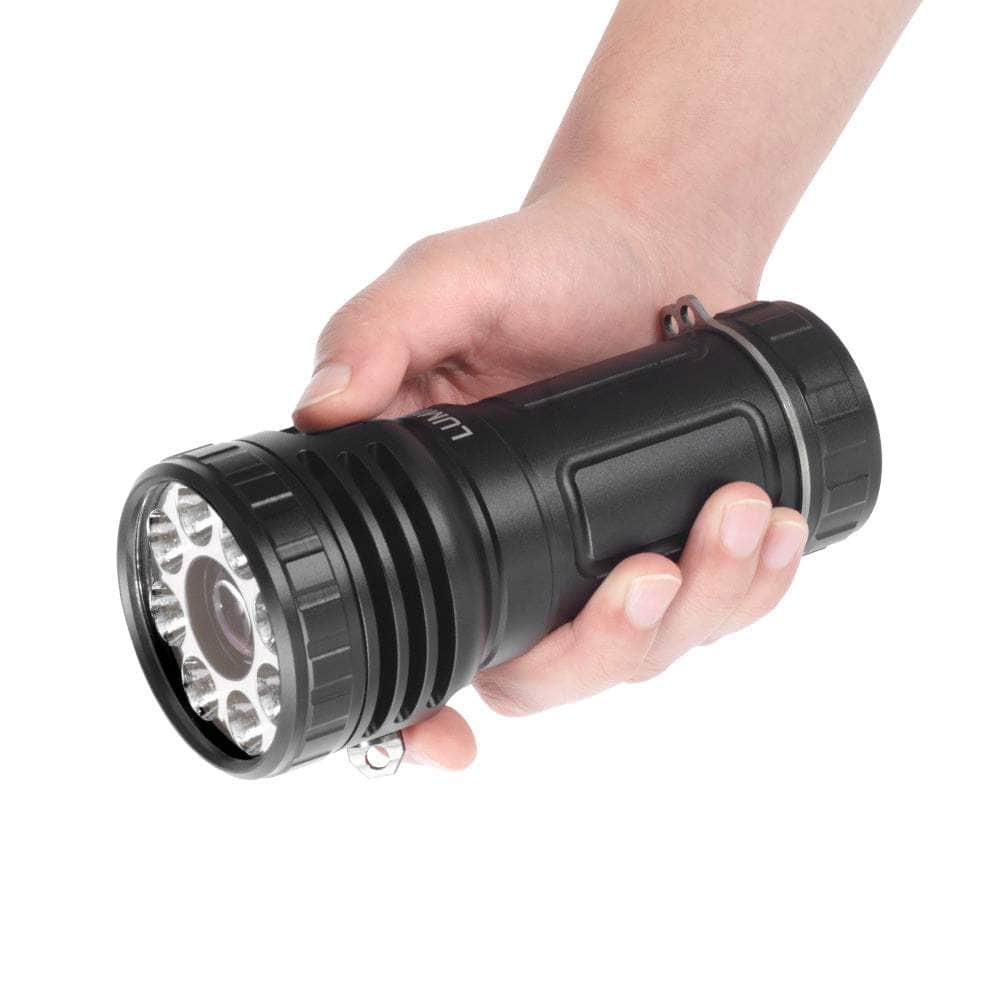

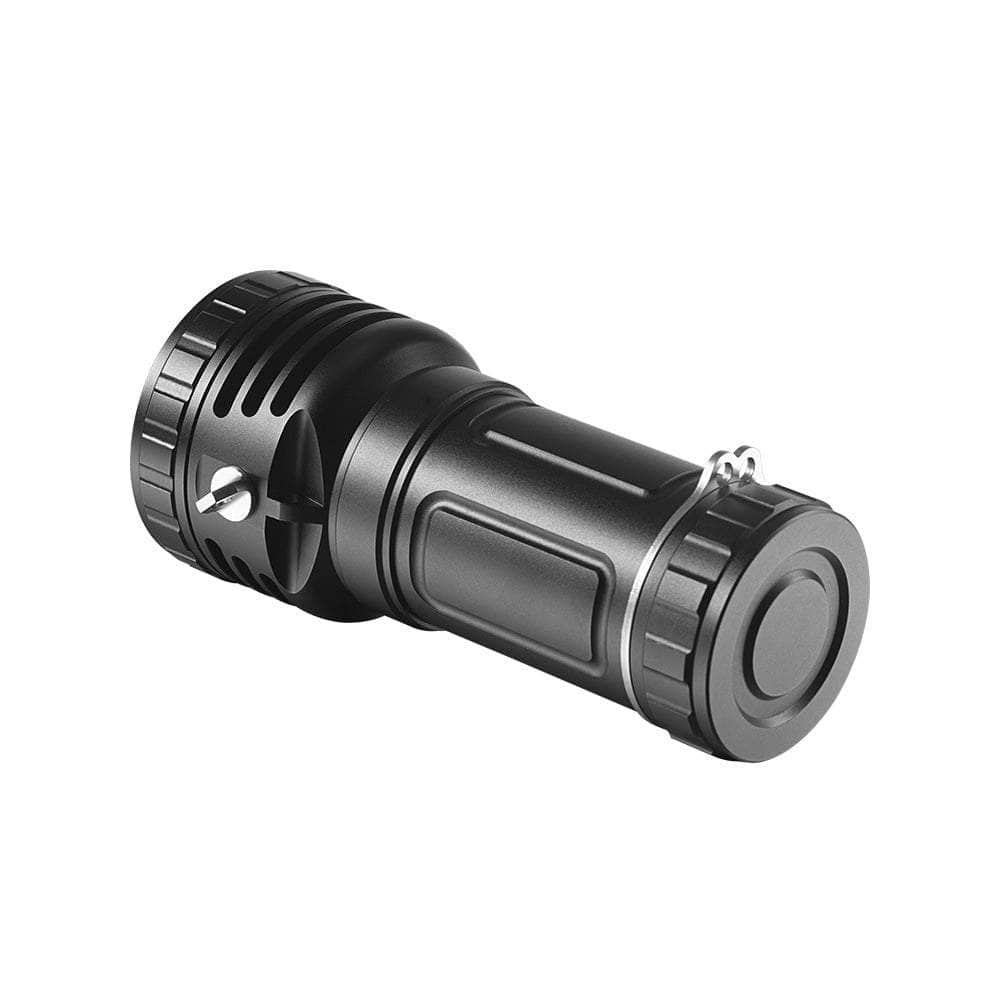

Lumintop Thor Pro Specifications

ANSI/NEMA FL1		Moonlight	Low	Med	High	Turbo
Output	LED	2	320	1600	5100	12100
	LEP	40	85	150	230	300
	Combo	45	400	1500	5200	12600
Runtime	LED	90D	30H	7H	1M40S+4H10M	45S+4H
	LEP	20H	16H	10H	6H30M	18M+5H45M
	Combo	18H	10H	5H	1M40S+4H30M	45S+4H
Intensity	LED	57800cd
	LEP	426200cd
Distance	LED	480m (Max)
	LEP	1300m (Max)
Impact Resistance		1m
Waterproof		IPX-8, underwater 2m
Size		68.5 X 51 X 153mm (Head Ø X Tube Ø X Length)
Net Weight		628g (Aluminum, battery excluded)
Light Source		1 X White Laser Emitter + 8 X LEDs
Power		86.4W (Max)
Battery		1-4 X 18650, button-top, unprotected, max length 67mm (Batteries are not included by default)
Rechargeable		USB Type-C, max charging current 4A
Discharge/ Powerbank		USB Type-C, max discharge current 3A
Protection		Overcharge protection, over-discharge protection, reverse protection, over-heat protection, low voltage protection

Notice: The above appropriate parameters are lab-tested by using four 18650 Li-ion batteries, it may vary due to the difference in batteries types and environments. The runtime on High and Turbo are accumulated due to the over-heat protection setting.

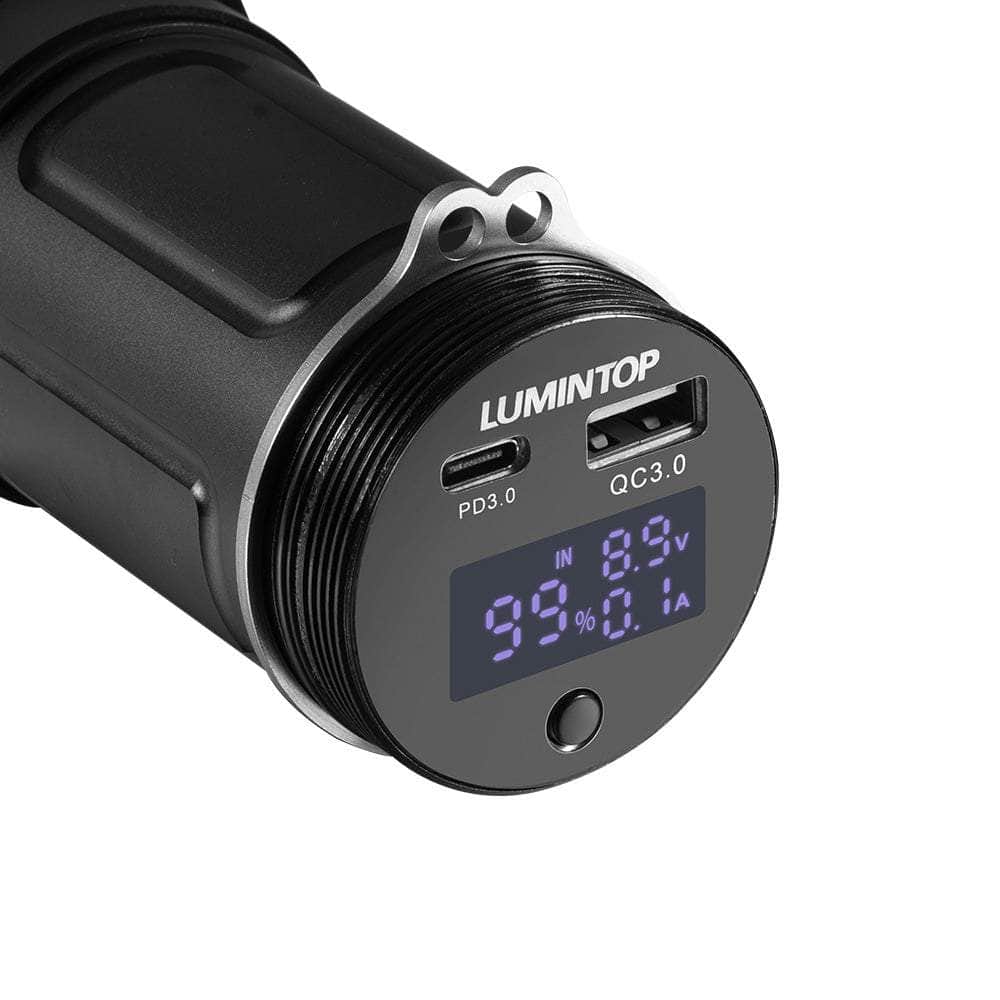

USB Type-C Quick Charge/ Discharge Function

1. Charge: Integrated PD3.0/ QC3.0 output quick charging protocol, support PD2.0/3.0 bidirectional input/output and PPS output protocol; max battery terminal charging current can reach up to 4.0A; adaptive charging current adjustment is available. When charging, the display will show the input voltage, output current, percentage (only for charging status, not for real-time battery percentage indicator), voltage, and charging current. The quick charge function is turned off when two ports are being used simultaneously.


2. Discharge (power bank function): Supports a maximum discharge current of 3A. When discharging, the output voltage, current, and percentage (only for displaying the discharge status, not for real-time battery indication) are displayed.
