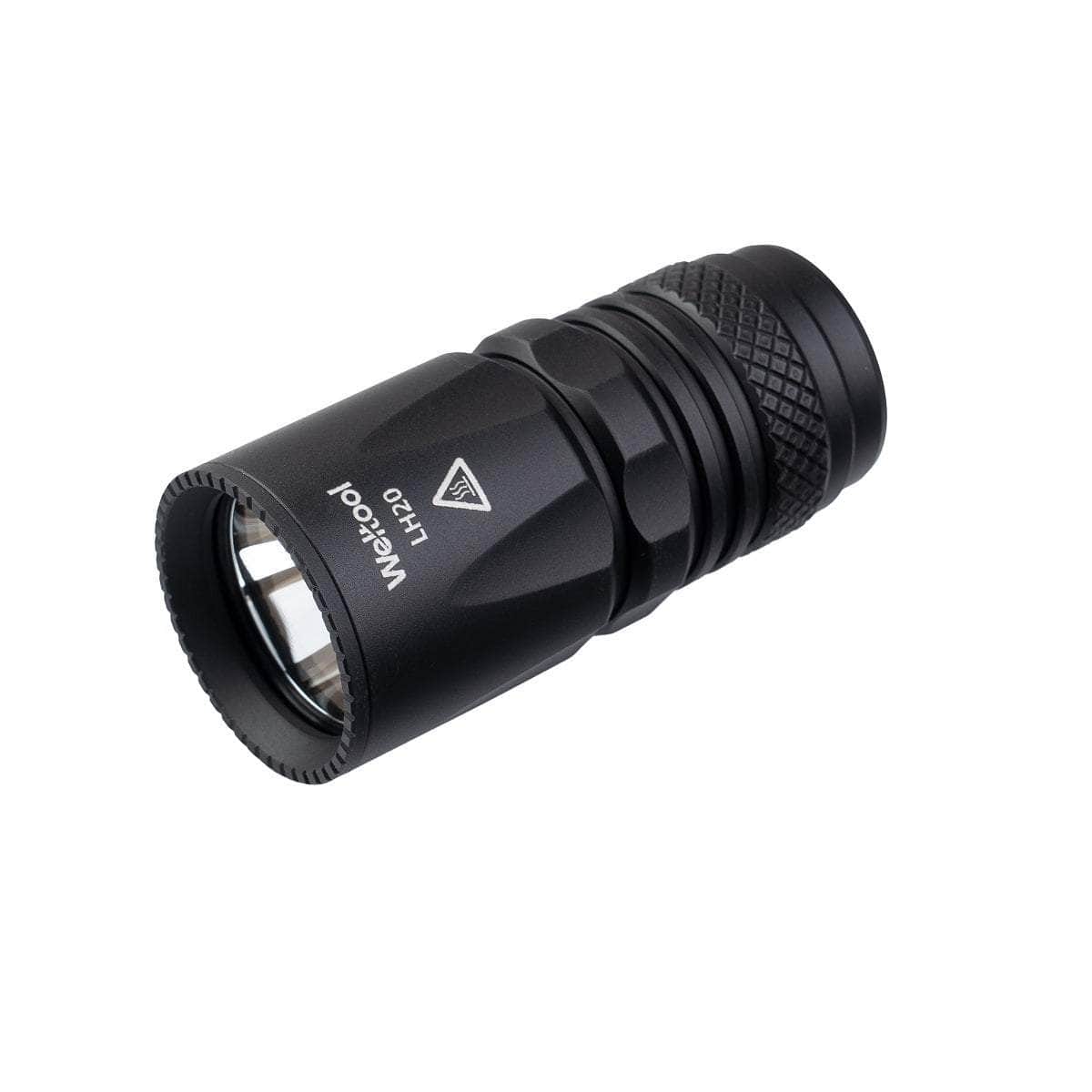

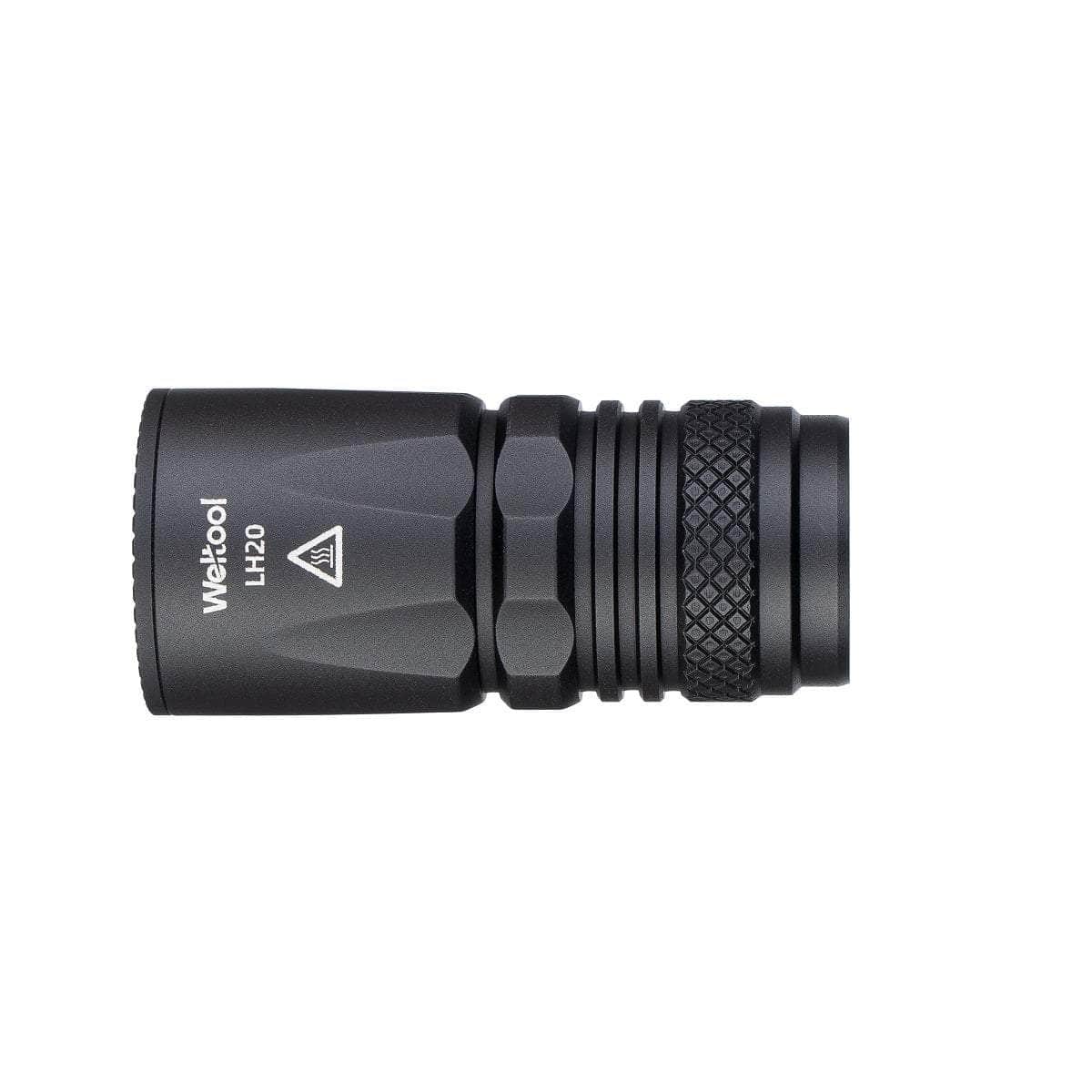

Weltool LH20 LEP Weaponlight head with spill



The Weltool LH20 is a milestone LEP weapon light head with spill .This light source complies with IEC 62471 Exempt and IEC 60825 Class 1.

Weltool LH20 Specifications:

Brightness: 700 lumens

Intensity: 364,500 candela

Beam Distance: 1,207 meters

Structure: Potting design

Weltool LH20 Compatibility:

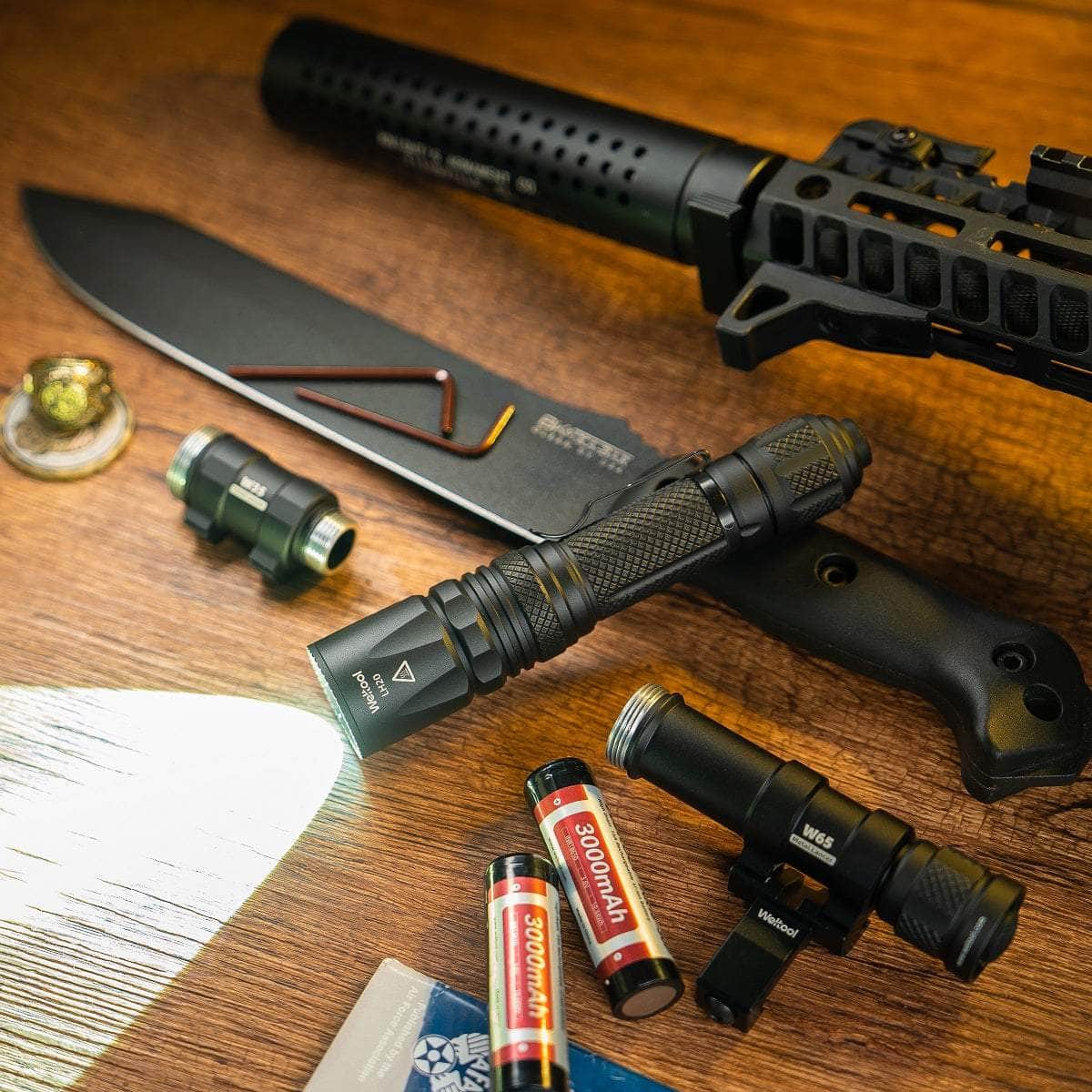

The LH20 is compatible with Weltool W35 and W65 weapon light bodies, as well as BB18 and BB3/BB6 handheld light bodies. It supports a single 18650 or 18350 rechargeable lithium-ion battery.

Innovative Design:

The LH20 revolutionarily adopts an aluminum reflector, achieving wide-range, low-intensity spill light. This allows users to maintain dark adaptation while enhancing situational awareness without the need for additional diffusion lenses. At the same time, it retains its unmatched high-candela output.

Features:

Lightweight design: Light head outer diameter of only 32.5mm

Battery polarity protection

Low battery warning function

Over-discharge protection

Overheat protection

Runtime (subject to variation based on testing conditions):

Using Weltool 3000mAh 18650 lithium-ion battery: 1 hour 40 minutes

Using Weltool 1200mAh 18350 lithium-ion battery: 29 minutes
